12x24 Cabin with Loft Plans

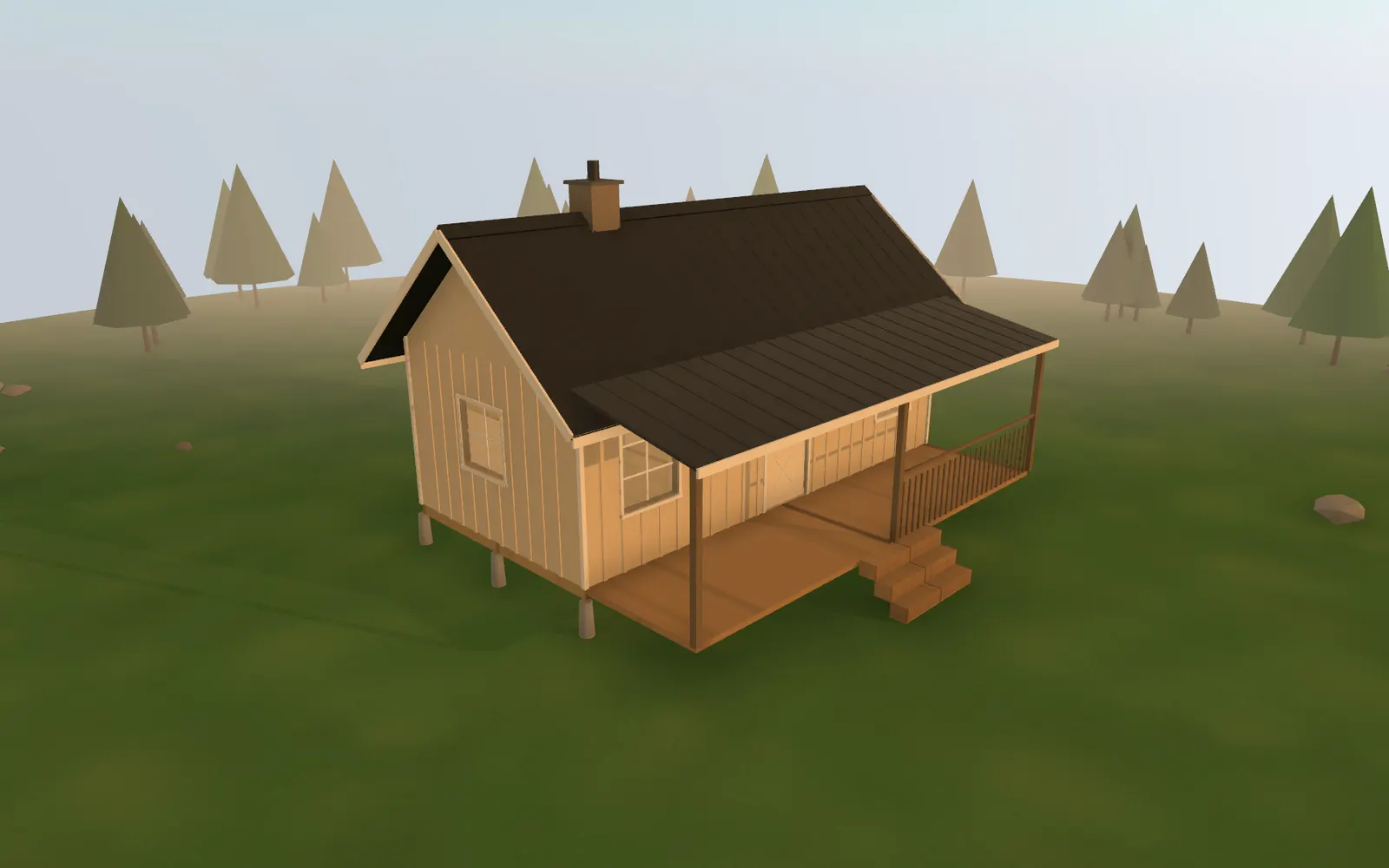

A 288 sq ft long, narrow gable cabin with an 8-foot sleeping loft and a steep 10/12 roof for loft headroom.
Plan specs
- Footprint
- 12' x 24'
- Floor area
- 288 sq ft
- Loft
- 192 sq ft (8' deep)
- Porch
- 144 sq ft (6' deep, front)
- Wall height
- 8'
- Roof
- Gable, 10/12 pitch
- Roofing
- Standing-seam metal
- Siding
- Board and batten
- Foundation
- Concrete piers
- Windows / doors
- 6 / 1
- Chimney
- Yes, for a wood stove
- Est. materials
- $13,557
Every figure here comes from the same engine the 3D builder runs, so it matches what you get when you open the plan.
About this plan
What the 12×24 Cabin with Loft is for.
Twelve feet wide keeps every floor and ceiling joist short, so the framing stays light and cheap even though the cabin is 24 feet long. The length is where the room goes: a living area at one end and a kitchen or bath at the other, with the 8-foot-deep loft running the full 24 feet along the back wall above both.
The roof is 10/12 instead of a shallower pitch because a loft needs height. On a 12-foot width, a steeper roof is the difference between a loft you sit up in and one you crawl into.
Windows are spread along both long walls and both ends so no part of a 24-foot room is far from daylight.
Good for
- A narrow lot or a site between trees
- Separating a sleeping loft from a living area below
- A floor joist span short enough for common 2x10s
The drawings
Elevations, section, and foundation.
The same views that are in the PDF, dimensioned in feet and inches. Download the PDF to print them at letter size.
Materials list
About $13,557 in materials.
Quantities come off the plan's dimensions with a 10 percent waste allowance, priced at typical U.S. retail. This is the shell only: labor, insulation, interior finishes, plumbing, and electrical are not included.
| Item | Qty | Unit | Est. cost |
|---|---|---|---|
| Foundation | $351 | ||
| Concrete pier blocksPre-cast pier blocks | 13 | ea | $195 |
| 4x4x8 treated postsPressure-treated | 13 | ea | $156 |
| Framing | $3,910 | ||
| 2x6 plates (bottom + double top)Treated bottom plate | 238 | LF | $428 |
| 2x6x8 wall studs16" OC | 105 | ea | $788 |
| 2x10 headers (doubled)Over window/door openings | 62 | LF | $174 |
| 2x10x12 floor joists16" OC | 22 | ea | $739 |
| 2x10 rim joist | 80 | LF | $224 |
| 2x8x12 ceiling joists16" OC | 22 | ea | $581 |
| 2x8x10 rafters | 44 | ea | $901 |
| 2x10 ridge board | 27 | LF | $76 |
| Sheathing | $1,421 | ||
| 7/16" OSB wall sheathing (4x8) | 16 | sheets | $448 |
| 1/2" plywood roof sheathing (4x8) | 17 | sheets | $595 |
| 3/4" T&G plywood subfloor (4x8) | 9 | sheets | $378 |
| Roofing | $2,570 | ||
| Metal standing seam panels | 528 | sqft | $2,376 |
| Roof underlayment (synthetic)400 sqft/roll | 2 | rolls | $100 |
| Drip edge | 94 | LF | $94 |
| Siding | $1,485 | ||
| 1x12 boardsBoard-and-batten siding | 546 | LF | $1,092 |
| 1x3 battens | 546 | LF | $273 |
| Housewrap9ft x 100ft rolls | 1 | rolls | $120 |
| Windows & Doors | $1,660 | ||
| WindowsStandard double-hung | 6 | ea | $1,200 |
| Window trim/casing | 6 | sets | $180 |
| Exterior doorsPre-hung exterior | 1 | ea | $250 |
| Door trim/casing | 1 | sets | $30 |
| Porch | $1,180 | ||
| Deck boardsPressure-treated | 159 | sqft | $477 |
| 6x6 porch posts8ft pressure-treated | 5 | ea | $125 |
| 2x8 porch joists16" OC | 132 | LF | $290 |
| Porch railing | 36 | LF | $288 |
| Loft | $677 | ||
| 2x8 loft joists16" OC spanning width | 106 | LF | $233 |
| 3/4" plywood loft floor (4x8) | 6 | sheets | $252 |
| Loft railing/guard | 24 | LF | $192 |
| Fasteners & Hardware | $302 | ||
| Nails, screws, joist hangersAssorted construction fasteners | 864 | sqft (est.) | $302 |
| Estimated materials total | $13,557 | ||
These are concept drawings for planning and estimating, not engineered or stamped plans. Have a builder or engineer check framing sizes, spans, and connections for your snow, wind, and soil conditions before you order materials.
