14x24 Cabin with Porch Plans

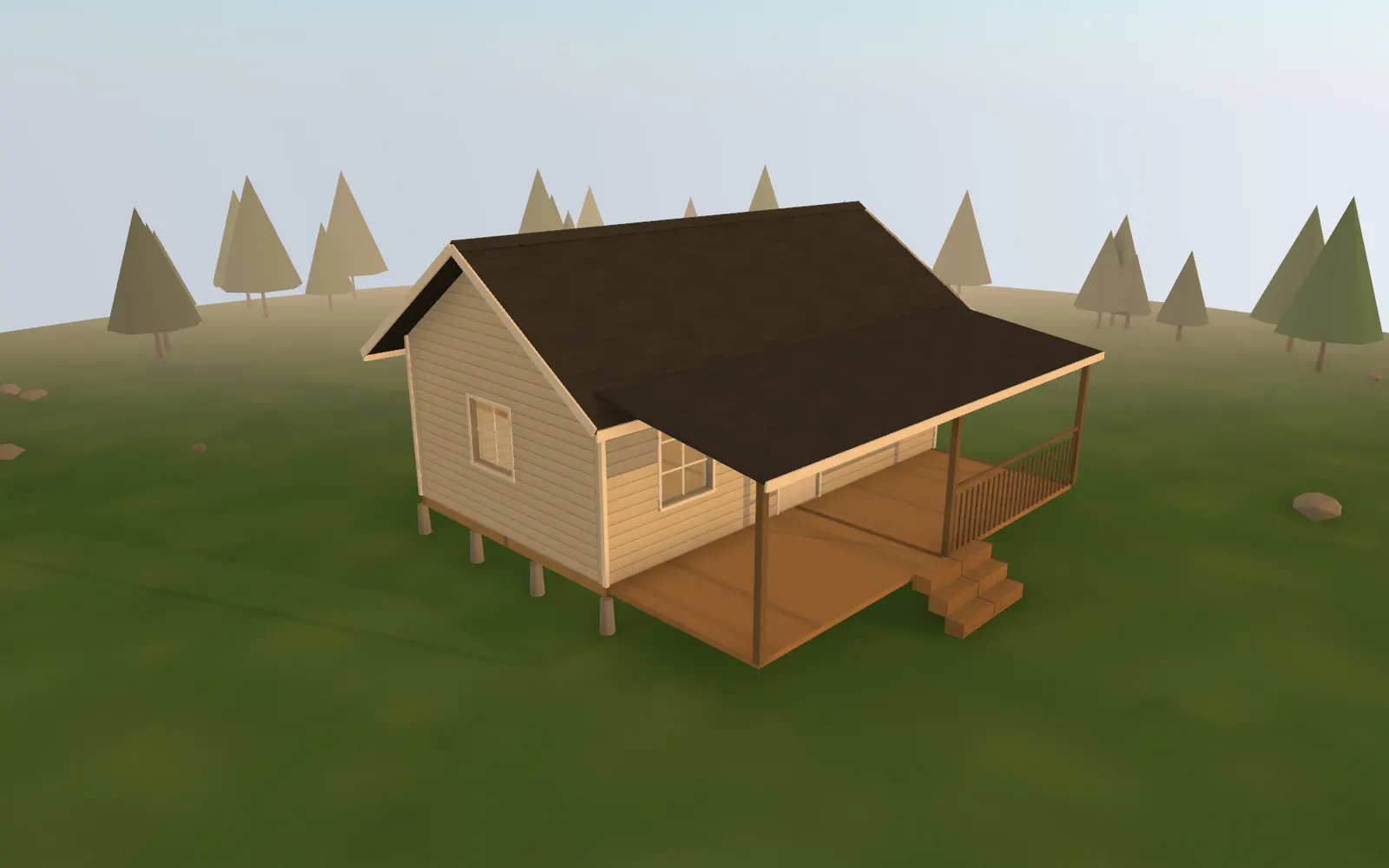

A 336 sq ft gable cabin with a deep 8-foot porch across the front and a loft over the back half.
Plan specs
- Footprint
- 14' x 24'
- Floor area
- 336 sq ft
- Loft
- 192 sq ft (8' deep)
- Porch
- 192 sq ft (8' deep, front)
- Wall height
- 8'
- Roof
- Gable, 8/12 pitch
- Roofing
- Asphalt shingles
- Siding
- Lap siding
- Foundation
- Concrete piers
- Windows / doors
- 6 / 1
- Est. materials
- $13,020
Every figure here comes from the same engine the 3D builder runs, so it matches what you get when you open the plan.
About this plan
What the 14×24 Cabin with Porch is for.
Eight feet of porch depth is the point where a porch stops being a landing and becomes a room: room for a table, a swing, or boots and firewood without blocking the door. On this plan it runs the full 24-foot front.
The loft covers the back 8 feet of the 14-foot depth, the full length of the cabin. The strip along the front windows stays open to the roof so the living space does not feel low.
Lap siding and an asphalt shingle roof keep this one looking like a small farmhouse, and both are materials you can buy at any lumber yard.
Good for
- Outdoor living: the porch is nearly a second room
- A weekend cabin for a family of four
- Lap siding for a traditional farmhouse look
The drawings
Elevations, section, and foundation.
The same views that are in the PDF, dimensioned in feet and inches. Download the PDF to print them at letter size.
Materials list
About $13,020 in materials.
Quantities come off the plan's dimensions with a 10 percent waste allowance, priced at typical U.S. retail. This is the shell only: labor, insulation, interior finishes, plumbing, and electrical are not included.
| Item | Qty | Unit | Est. cost |
|---|---|---|---|
| Foundation | $378 | ||
| Concrete pier blocksPre-cast pier blocks | 14 | ea | $210 |
| 4x4x8 treated postsPressure-treated | 14 | ea | $168 |
| Framing | $4,246 | ||
| 2x6 plates (bottom + double top)Treated bottom plate | 251 | LF | $452 |
| 2x6x8 wall studs16" OC | 108 | ea | $810 |
| 2x10 headers (doubled)Over window/door openings | 62 | LF | $174 |
| 2x10x14 floor joists16" OC | 22 | ea | $862 |
| 2x10 rim joist | 84 | LF | $235 |
| 2x8x14 ceiling joists16" OC | 22 | ea | $678 |
| 2x8x10 rafters | 44 | ea | $960 |
| 2x10 ridge board | 27 | LF | $76 |
| Sheathing | $1,568 | ||
| 7/16" OSB wall sheathing (4x8) | 17 | sheets | $476 |
| 1/2" plywood roof sheathing (4x8) | 18 | sheets | $630 |
| 3/4" T&G plywood subfloor (4x8) | 11 | sheets | $462 |
| Roofing | $790 | ||
| Asphalt shingle bundles3-tab or architectural | 17 | bundles | $595 |
| Roof underlayment (synthetic)400 sqft/roll | 2 | rolls | $100 |
| Drip edge | 95 | LF | $95 |
| Siding | $1,863 | ||
| 1x6 lap siding | 1,162 | LF | $1,743 |
| Housewrap9ft x 100ft rolls | 1 | rolls | $120 |
| Windows & Doors | $1,660 | ||
| WindowsStandard double-hung | 6 | ea | $1,200 |
| Window trim/casing | 6 | sets | $180 |
| Exterior doorsPre-hung exterior | 1 | ea | $250 |
| Door trim/casing | 1 | sets | $30 |
| Porch | $1,468 | ||
| Deck boardsPressure-treated | 212 | sqft | $636 |
| 6x6 porch posts8ft pressure-treated | 5 | ea | $125 |
| 2x8 porch joists16" OC | 176 | LF | $387 |
| Porch railing | 40 | LF | $320 |
| Loft | $717 | ||
| 2x8 loft joists16" OC spanning width | 124 | LF | $273 |
| 3/4" plywood loft floor (4x8) | 6 | sheets | $252 |
| Loft railing/guard | 24 | LF | $192 |
| Fasteners & Hardware | $330 | ||
| Nails, screws, joist hangersAssorted construction fasteners | 944 | sqft (est.) | $330 |
| Estimated materials total | $13,020 | ||
These are concept drawings for planning and estimating, not engineered or stamped plans. Have a builder or engineer check framing sizes, spans, and connections for your snow, wind, and soil conditions before you order materials.
Common questions
Building the 14×24 Cabin with Porch.
