16x32 Cabin Plans

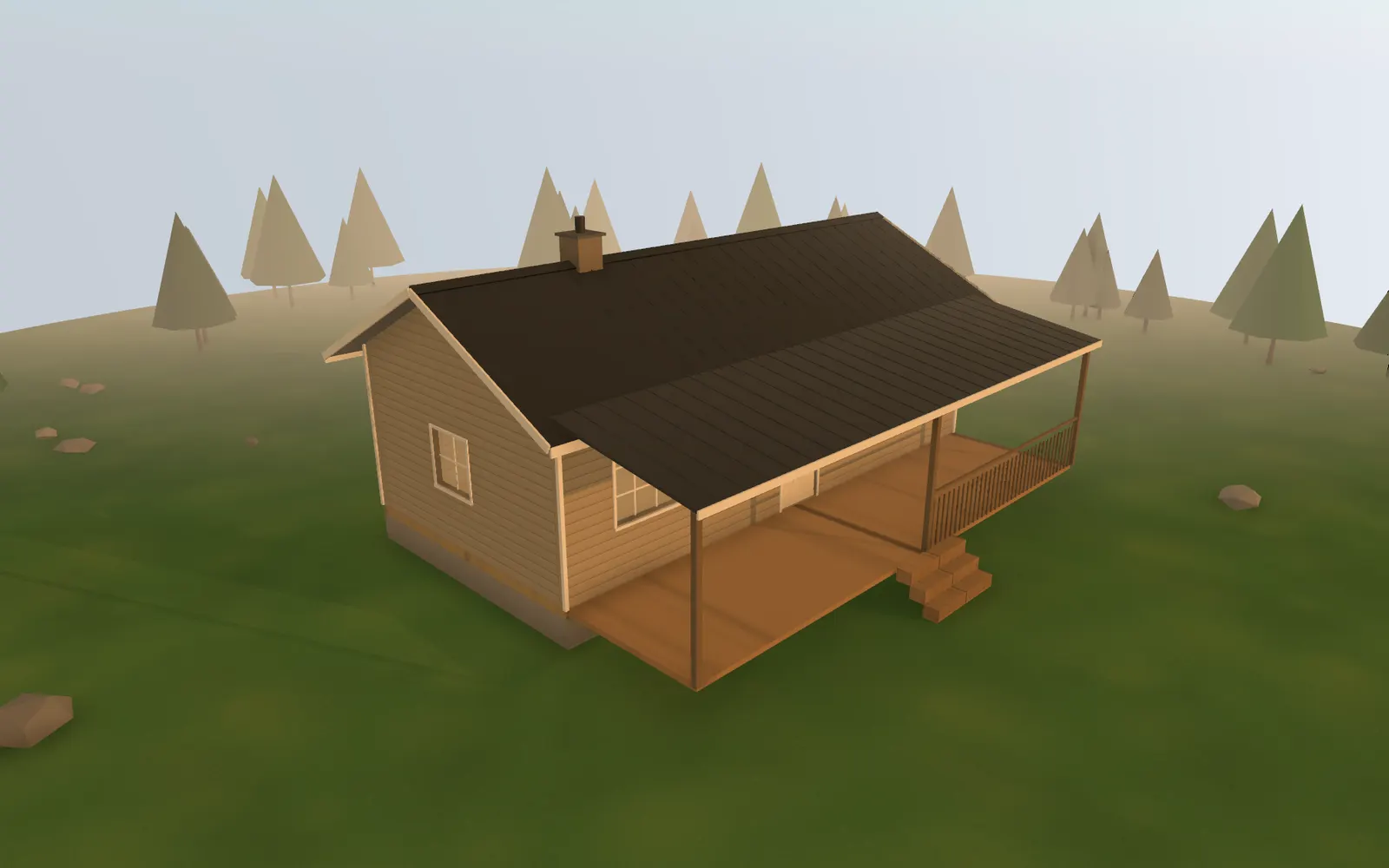

A 512 sq ft full-time cabin on a crawlspace, with 9-foot walls, a loft, and a porch along the long side.
Plan specs
- Footprint
- 16' x 32'
- Floor area
- 512 sq ft
- Loft
- 256 sq ft (8' deep)
- Porch
- 256 sq ft (8' deep, front)
- Wall height
- 9'
- Roof
- Gable, 6/12 pitch
- Roofing
- Standing-seam metal
- Siding
- Lap siding
- Foundation
- Block crawlspace
- Windows / doors
- 7 / 1
- Chimney
- Yes, for a wood stove
- Est. materials
- $21,338
Every figure here comes from the same engine the 3D builder runs, so it matches what you get when you open the plan.
About this plan
What the 16×32 Cabin is for.
At 512 square feet on the main floor this is a small house, not a camp. Thirty-two feet of length fits a bedroom at one end, a bath in the middle, and a kitchen and living room at the other, and the loft adds storage or a second sleeping space.
The crawlspace foundation is the main difference from the smaller plans. It costs more than piers, but it gives you a dry, reachable space under the floor for water lines, drains, and wiring, which matters once a cabin has plumbing.
Nine-foot walls make a long, narrow room feel less like a hallway, and the three windows on the back wall line up with the rooms a typical layout puts there.
Good for
- Living full-time off-grid
- A crawlspace for plumbing and wiring access
- Two rooms plus a bath on one floor
The drawings
Elevations, section, and foundation.
The same views that are in the PDF, dimensioned in feet and inches. Download the PDF to print them at letter size.
Materials list
About $21,338 in materials.
Quantities come off the plan's dimensions with a 10 percent waste allowance, priced at typical U.S. retail. This is the shell only: labor, insulation, interior finishes, plumbing, and electrical are not included.
| Item | Qty | Unit | Est. cost |
|---|---|---|---|
| Foundation | $1,712 | ||
| 8x8x16 CMU blocksConcrete masonry units | 316 | ea | $1,580 |
| Mortar mix (80lb bags) | 11 | ea | $132 |
| Framing | $6,076 | ||
| 2x6 plates (bottom + double top)Treated bottom plate | 317 | LF | $571 |
| 2x6x10 wall studs16" OC | 129 | ea | $1,226 |
| 2x10 headers (doubled)Over window/door openings | 82 | LF | $230 |
| 2x10x16 floor joists16" OC | 29 | ea | $1,299 |
| 2x10 rim joist | 106 | LF | $297 |
| 2x8x16 ceiling joists16" OC | 29 | ea | $1,021 |
| 2x8x11 rafters | 58 | ea | $1,333 |
| 2x10 ridge board | 36 | LF | $101 |
| Sheathing | $2,184 | ||
| 7/16" OSB wall sheathing (4x8) | 24 | sheets | $672 |
| 1/2" plywood roof sheathing (4x8) | 24 | sheets | $840 |
| 3/4" T&G plywood subfloor (4x8) | 16 | sheets | $672 |
| Roofing | $3,561 | ||
| Metal standing seam panels | 744 | sqft | $3,348 |
| Roof underlayment (synthetic)400 sqft/roll | 2 | rolls | $100 |
| Drip edge | 113 | LF | $113 |
| Siding | $2,622 | ||
| 1x6 lap siding | 1,668 | LF | $2,502 |
| Housewrap9ft x 100ft rolls | 1 | rolls | $120 |
| Windows & Doors | $1,890 | ||
| WindowsStandard double-hung | 7 | ea | $1,400 |
| Window trim/casing | 7 | sets | $210 |
| Exterior doorsPre-hung exterior | 1 | ea | $250 |
| Door trim/casing | 1 | sets | $30 |
| Porch | $1,909 | ||
| Deck boardsPressure-treated | 282 | sqft | $846 |
| 6x6 porch posts8ft pressure-treated | 7 | ea | $175 |
| 2x8 porch joists16" OC | 229 | LF | $504 |
| Porch railing | 48 | LF | $384 |
| Loft | $902 | ||
| 2x8 loft joists16" OC spanning width | 141 | LF | $310 |
| 3/4" plywood loft floor (4x8) | 8 | sheets | $336 |
| Loft railing/guard | 32 | LF | $256 |
| Fasteners & Hardware | $482 | ||
| Nails, screws, joist hangersAssorted construction fasteners | 1,376 | sqft (est.) | $482 |
| Estimated materials total | $21,338 | ||
These are concept drawings for planning and estimating, not engineered or stamped plans. Have a builder or engineer check framing sizes, spans, and connections for your snow, wind, and soil conditions before you order materials.
