20x24 Off-Grid Cabin Plans

A 480 sq ft off-grid home with 9-foot walls, a 10-foot loft, a crawlspace, and seven windows for daylight.

Download free PDF Customize in 3D

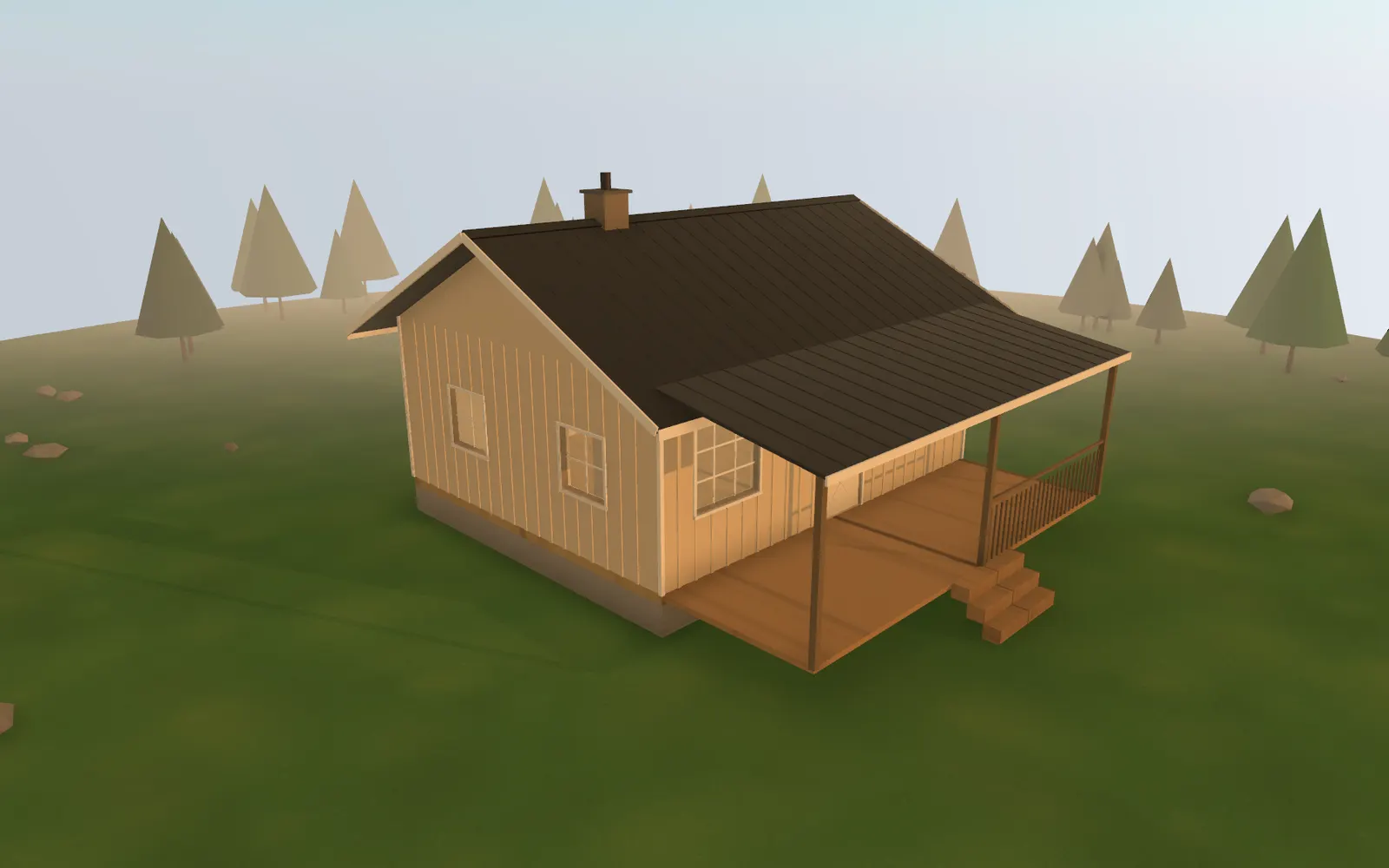

3D render of the 20×24 Off-Grid Cabin at golden hour, seen from the front corner — Rendered in the cabin builderOpen it in 3D to walk around it, change it, or see it at dusk.

Save to Pinterest

Floor plan

Plan specs

Footprint: 20' x 24'
Floor area: 480 sq ft
Loft: 240 sq ft (10' deep)
Porch: 192 sq ft (8' deep, front)
Wall height: 9'
Roof: Gable, 6/12 pitch
Roofing: Standing-seam metal
Siding: Board and batten
Foundation: Block crawlspace
Windows / doors: 7 / 1
Chimney: Yes, for a wood stove
Est. materials: $19,758

Every figure here comes from the same engine the 3D builder runs, so it matches what you get when you open the plan.

About this plan

What the 20×24 Off-Grid Cabin is for.

Twenty feet of width changes the layout options compared to the narrow plans: a bedroom and bath can sit side by side across one end instead of in a line. Floor joists at this span need to be sized carefully, so this is a plan to have a builder or engineer look over before you order lumber.

Seven windows is deliberate. Off-grid, every hour of daylight is an hour you are not running lights off the battery bank, so this plan spreads glass across all four walls.

The crawlspace keeps plumbing and wiring reachable, and the chimney is drawn in for a wood stove as primary or backup heat.

Good for

Full-time off-grid living for a couple or small family
A wide floor plan that fits a bedroom beside the living area
A loft big enough for a second bedroom

The drawings

Elevations, section, and foundation.

The same views that are in the PDF, dimensioned in feet and inches. Download the PDF to print them at letter size.

Front elevation

Side elevation

Wall and roof cross-section

Foundation plan

Download free PDF Customize in 3D

Materials list

About $19,758 in materials.

Quantities come off the plan's dimensions with a 10 percent waste allowance, priced at typical U.S. retail. This is the shell only: labor, insulation, interior finishes, plumbing, and electrical are not included.

Download materials list (CSV)

Item	Qty	Unit	Est. cost
Foundation			$1,565
8x8x16 CMU blocksConcrete masonry units	289	ea	$1,445
Mortar mix (80lb bags)	10	ea	$120
Framing			$5,731
2x6 plates (bottom + double top)Treated bottom plate	291	LF	$524
2x6x10 wall studs16" OC	123	ea	$1,169
2x10 headers (doubled)Over window/door openings	77	LF	$216
2x10x20 floor joists16" OC	22	ea	$1,232
2x10 rim joist	97	LF	$272
2x8x20 ceiling joists16" OC	22	ea	$968
2x8x14 rafters	44	ea	$1,276
2x10 ridge board	27	LF	$76
Sheathing			$2,086
7/16" OSB wall sheathing (4x8)	22	sheets	$616
1/2" plywood roof sheathing (4x8)	24	sheets	$840
3/4" T&G plywood subfloor (4x8)	15	sheets	$630
Roofing			$3,594
Metal standing seam panels	752	sqft	$3,384
Roof underlayment (synthetic)400 sqft/roll	2	rolls	$100
Drip edge	110	LF	$110
Siding			$2,013
1x12 boardsBoard-and-batten siding	757	LF	$1,514
1x3 battens	757	LF	$379
Housewrap9ft x 100ft rolls	1	rolls	$120
Windows & Doors			$1,890
WindowsStandard double-hung	7	ea	$1,400
Window trim/casing	7	sets	$210
Exterior doorsPre-hung exterior	1	ea	$250
Door trim/casing	1	sets	$30
Porch			$1,468
Deck boardsPressure-treated	212	sqft	$636
6x6 porch posts8ft pressure-treated	5	ea	$125
2x8 porch joists16" OC	176	LF	$387
Porch railing	40	LF	$320
Loft			$966
2x8 loft joists16" OC spanning width	199	LF	$438
3/4" plywood loft floor (4x8)	8	sheets	$336
Loft railing/guard	24	LF	$192
Fasteners & Hardware			$445
Nails, screws, joist hangersAssorted construction fasteners	1,272	sqft (est.)	$445
Estimated materials total			$19,758

These are concept drawings for planning and estimating, not engineered or stamped plans. Have a builder or engineer check framing sizes, spans, and connections for your snow, wind, and soil conditions before you order materials.

Common questions

Building the 20×24 Off-Grid Cabin.

The materials for this 20x24 Off-Grid Cabin estimate at about $19,758. The biggest lines are framing ($5,731), roofing ($3,594), sheathing ($2,086). That covers the shell: foundation, framing, sheathing, roofing, siding, windows, doors, the porch, the loft and fasteners, at typical U.S. retail prices with a 10 percent waste allowance. It does not include labor, insulation, drywall, interior finishes, plumbing, electrical, or delivery, and local lumber prices vary.

At 480 sq ft, this plan is over the 200 sq ft limit the International Residential Code (section R105.2) uses to exempt small accessory structures, so in most places that adopt that code you should expect to need a building permit. Rules vary by county, and some rural counties do not enforce a residential building code at all, so ask your local building department before you build.

The PDF has six letter-size pages: a cover sheet with the specs, a dimensioned floor plan, front and rear elevations, left and right elevations, a wall-and-roof cross-section, and a foundation plan. The materials list downloads separately as a CSV you can open in Excel, Numbers, or Google Sheets to price at your local lumber yard. There is no signup and no email required. These are concept drawings for planning and estimating, not engineered or stamped construction documents.

Yes. Open the plan in the free 3D cabin builder and change anything: length, width, wall height, roof style and pitch, siding, foundation, porch, loft, every window and door, and the interior walls and rooms. The cost estimate updates as you go, and you can export your own version as a PDF and a materials list.
